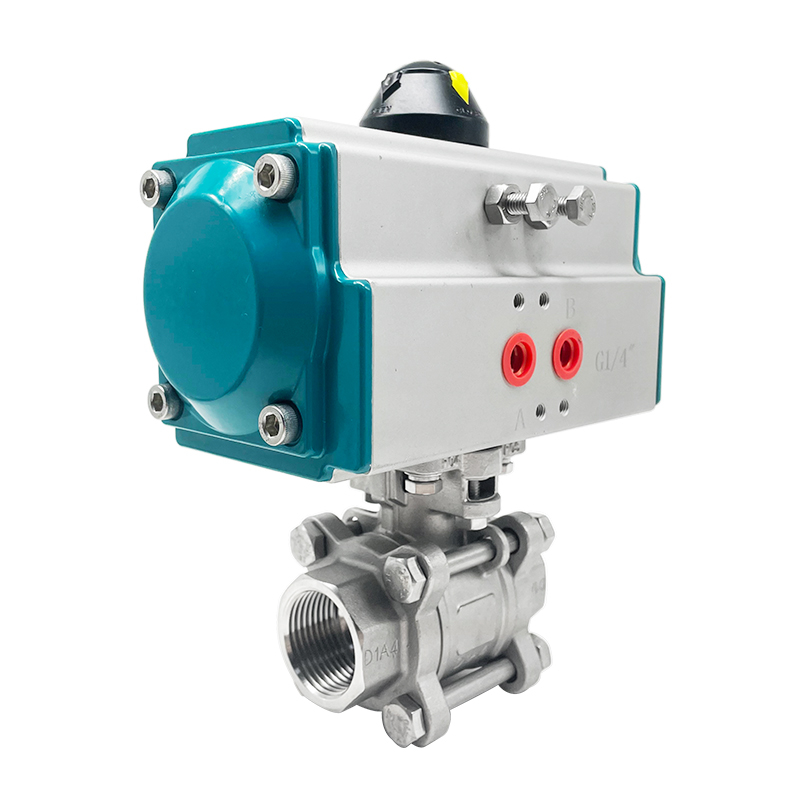

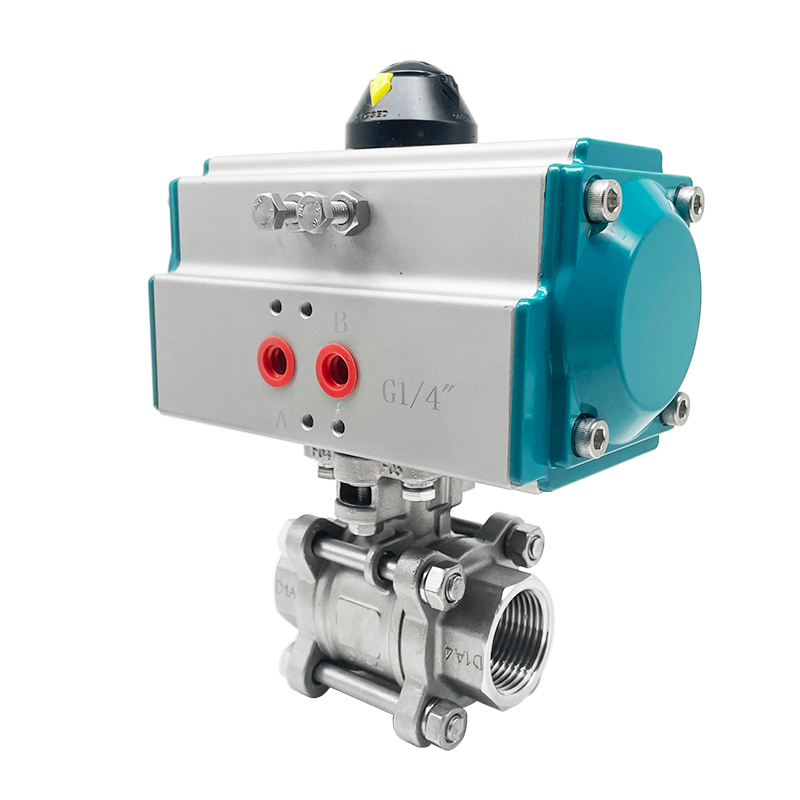

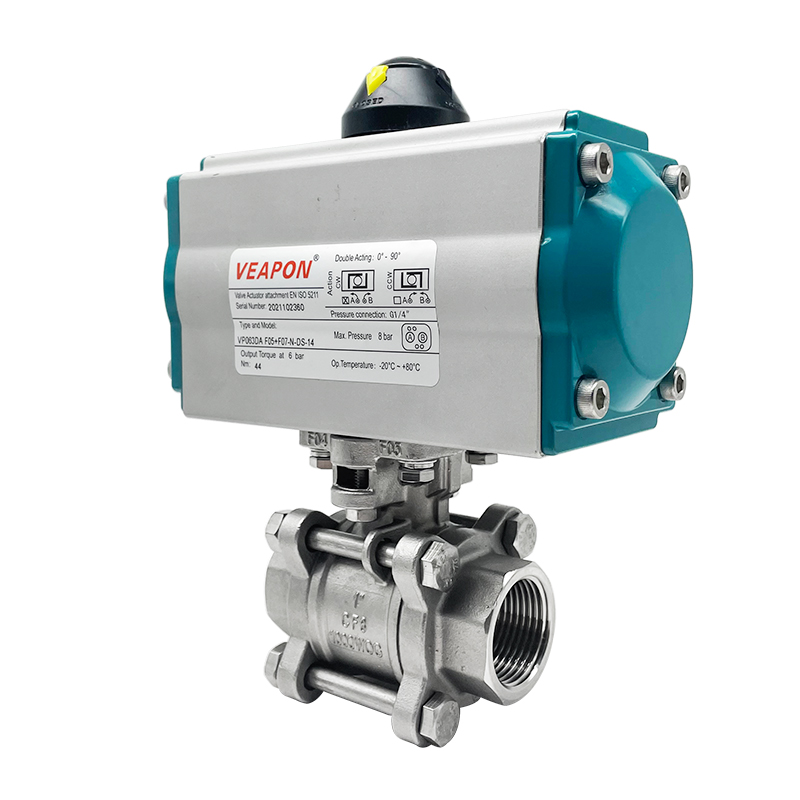

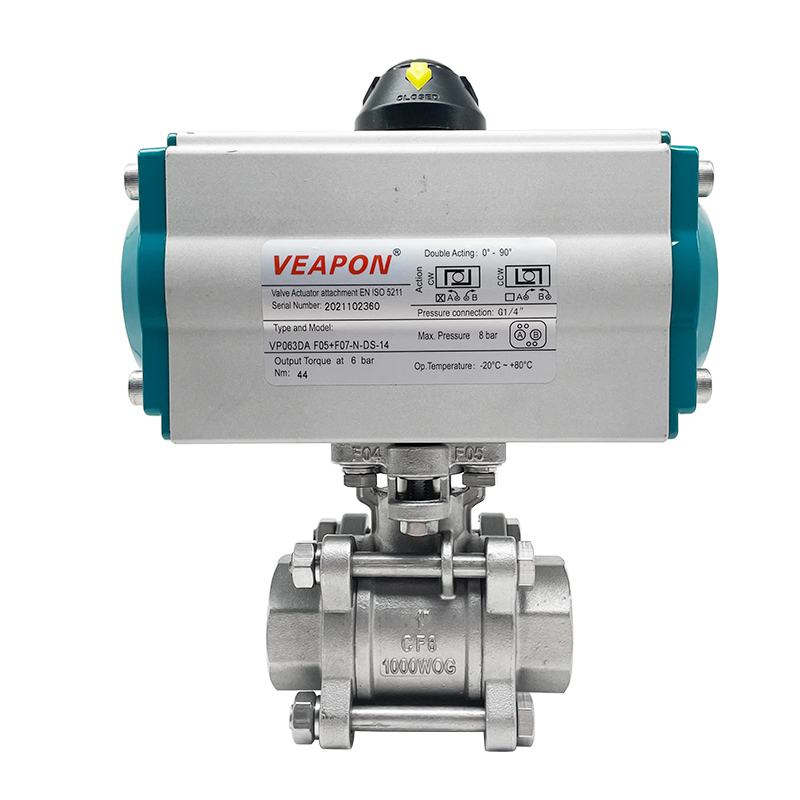

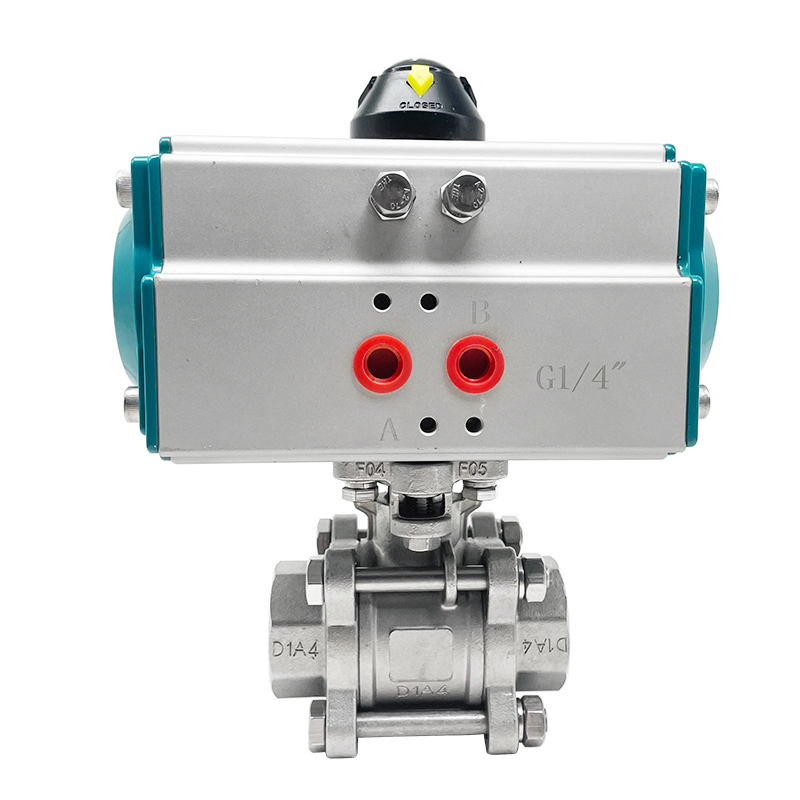

Pneumatic Threaded Ball Valve


Pneumatic Threaded Ball Valve


Specifications:

Valve Body material:  WCB, SS304(CF8), SS304L(CF3),SS316(CF8M), SS316L(CF3M)
Standard: ANSI/JIS/DIN/GB
DN size: DN15-DN100 (1/2"~4")
Pressure: PN16, PN25, PN40

Valve Seat: PTFE, RPTFE, PPL
Actuator Brand: Veapon
Actuator style: Double acting, Single Acting
Power supply: Pneumatic actuator
Rotation Angle: Standard type (0-90°)±5°


  • details
  • Video


What is Pneumatic Threaded Ball Valve?

"Pneumatic Threaded Ball Valve" means a regular Threaded Ball valve with a pneumatic actuator. Pneumatic valves are designed for quick opening and closing. A well-engineered combination of a powerful pneumatic actuator, fitted to our heavy duty high performance, ball valve. The valve comprises of a split 2-piece body with PTFE seats. The Pneumatic actuator offers single acting (fail closed or open) or Double acting options. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. Single acting (Spring return) actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. They rotate 90 degrees (quarter-turn) from fully open to fully closed.  Sized on 5.5 bar pilot air supply with 30% added safety factor. This unit gives you an exceptional combination, that offers trouble free operation coupled with high performance. We offer this valve in Stainless Steel with various seat permutations and many accessories which can be fitted onto the actuator such as switch boxes, solenoids, positioners and filter pressure reducing valves.




Product Details:

  • Baked Varnish: the varnishes are all baked on both ends of the cylinder and the valve body, which is not easy to peel off and with fine appearance.

  • SS304 Screw: Cylinder body screws are made of stainless steel. Fine workmanship, guaranteed quality.

  • Stainless Steel Material: The valve body material is stainless steel, not easy to leak, good sealing performance and lighter switching torque.

  • Sealing Ring: Japanese Dajin seal, strong sealing, light torque.

Product details of pneumatic threaded ball valve.jpg

Basic Parameters for 2-way Pneumatic Threaded Ball valve:

  • Pneumatic actuator: Double Aciting, Single Acting (Spring Return),

  • rotation angle: standard type (0°-90°)±5°

  • nominal diameter: DN15-DN200(1/2"-8")

  • nominal pressure: PN16, PN25, PN40

  • Valve body and ball material: CF8(SS304), CF3(SS304L),CF8M(SS316), CF3M(SS316L), WCB,

  • seal material: PTFE, RPTFE, PPL


Ball Valve Standard Features:

  • Full port for unrestricted flow

  • 316 stainless steel body, ball and stem

  • Blow out proof stem

  • RTFE ball seats extend cycle life

  • Triple RTFE/Viton stem seal design, live loaded and adjustable

  • ISO5211 direct mounting pad

  • Anti-Static Design


Pneumatic Actuator Standard Features:

  • Extended cycle life (1 million cycles)

  • Quarter turn rack & pinion design

  • Highly visible valve position indicator

  • Dry or lubricated pilot air

  • Factory lubricated for normal life

  • Anodized aluminum body with epoxy-polyester coated end covers

  • Namur & ISO5211 mounting pad


Optional Accessories:

  • Limit switch boxes, solenoid valves, positioners, filter pressure reducing valves

Contact us: info@slv-cn.com


SLV-3pcs high platform threaded ball valve drawing.pdf

SLV-Pneumatic Actuator.pdf
